❗ Unit and Larger Context

How to build a machine? Microarchitecture

✒️ -> Scratch Notes

Transclude of ECS154A-L19-2025-02-24-22.16.00.excalidraw

• Minimal example of CPU, capable of executing instructions

• X and Z are buffers, to hold the data and prevent signals from mixing (bus can’t hold A and B at same time, need temp storage in X) (same with Z)

• FDE Cycle:

  1. Fetch - Gets the instruction
  2. Decode - Decodes the fetched information, translates it
  3. Execute - Does what the instruction told it to

• Going through this cycle is effectively a big Moore model, going through the states of each step.

Example Steps for Instructions

Cycle	Instructions
0	PC -> Bus ()	Bus -> MAR ( )	Send the READ signal	BUS -> X ()
1	INC B ()
2	Z -> Bus	Bus -> PC
3	MDR -> Bus	Bus -> IR
4	ACC -> Bus	Bus -> X
5	R -> Bus	ADD
6	Z -> Bus	Bus -> ACC

• Instructions for ADD R
  • ADD R: ACC = ACC + R

Cycle	Instructions
n	R -> Bus ()	Bus -> MAR ( )	Send the READ signal
n+1	ACC -> Bus	Bus -> X
n+2	MDR -> Bus	ADD
n+3	Z -> Bus	B -> ACC
n+4
n+5

• Instructions for ADD mem(R)
  • ACC (R): CC = ACC + mem(R)

Comparison:

ADD R takes 3 execute cycles
ADD (R) takes 4 execute cycles

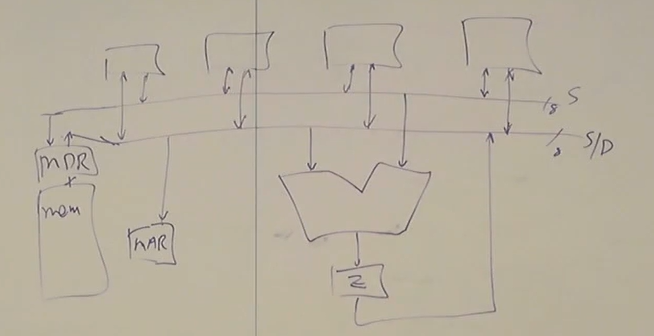

We can see that the limiting factor here is sharing the bus. Multiple buses could mean faster execution!

Transclude of ECS154A-L17-2025-02-25-16.39.27.excalidraw

• Visualized as a Moore Model

Continuation

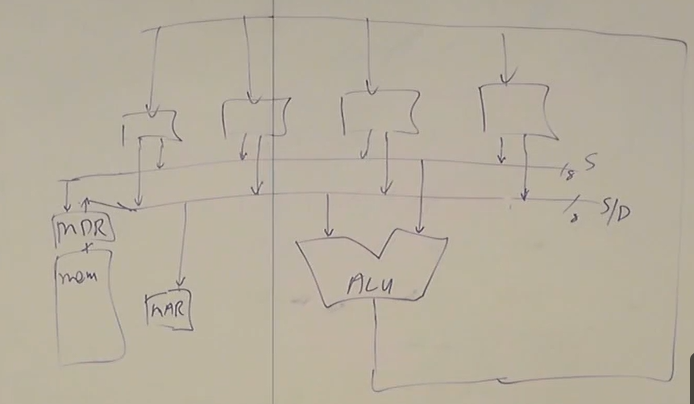

You can speed it up by adding another bus! Or another! Or another!

With 3 buses, you can do the entire instruction of add in ONE cycle!

CISC - Complex Instruction Set Computer
RISC - Reduced Instruction Set Computer

Which is faster?

• Define faster!
• CISC has more instructions than RISC, but RISC manages them better.
