ECS150-MT2

Operating Systems - MT2

What we have studied since the last midterm. There are 8 questions total.

• OS structure (1 question)
• Kernel abstraction (2 questions)
• Process scheduling (2 questions)
• Concurrency and threads (2 questions)
• Synchronization (1 question)

Lectures covered:

04.os-structure.pdf
05.kernel-abstraction.pdf
06.process-scheduling.pdf
07.concurrency-threads.pdf
08.sync.pdf

4 - OS Structure

Layers

Made up of multiple layers (top-bottom is user vs kernel vs hardware)

1. Application - This is manual code and that stuff
2. Libraries - These are precompiled objects linked to applications (in C)
3. Portable OS layer - This is where things become kernel level. Implemntation of most system calls for high-level kernel code (virtual file system, IPC, process scheduler, etc.)
4. Machine dependent layer - More gritty stuff. Bootstrap, system init, I/O device drivers, memory managements, etc.
5. Processor (+ hardware system) : layers to interface with hardware and processors. ISA+ABI.
   API (Application Programming Interface): interface between pieces of code
   UAPI (User API): syscall interface between apps and kernel
   HAL (hardware-abstraction layer), interface inside kernel between arch- independent code and arch-dependent code
   ISA (Instruction Set Architecture): list of processor instructions
   ABI (Application Binary Interface): interface between code and processor

Compilation

4 stages:

• Preprocessor (cpp) - Transform program before compilation
• Compiler (cc) - Compiles a program into assembly code
• Assembler (as) - Compiles assembly code into relocatable object file
• Linker (ld) - Links object files into an executable

Kernel

Monolithic Kernel

Entire kernel code linked together in a single large executable
Sys call interface between kernel and applications

• Linux / Unix / BSD / Windows 9x
  Pros:
• Great performance
  Cons:
• Increased potential for instability
  • Crash in any function brings the whole system down, kernel panic

Microkernel

Kernel services implemented as regular user space processes
Microkernel communicates with service using message passing

• Minix / Mach / L4
  Pros:
• Great fault isolation
  Cons:
• Can be inneficient (boundary crossings?)

Hybrid kernel

Trusted OS services implemented in kernel
Non trusted OS services implemented as regular user space processes
best of both worlds?

• macOS / Windows NT

Monolithic kernel for the most part, but user-space drivers

5 - Kernel Abstraction

Processes

A program in execution, running with limited rights
Multiple benefits to protected execution of processes:

• Prevent processes from:
  • crashing all other processes
  • crashing the os
  • hogging resources
• protection from malicious processes

PCB (process control block) Info:

• PID
• Memory segments it has access to
• Permitted files (based on user ID (uid), group ID (gid) )

Execution: Native vs Interpreted

• Interpreted
  • the default in interpreted languages (JS, Python, etc.)
  • Emulate each program instruction
  • Execution quite slow
• Native
  • Run unpriveledged code directly on CPU
    • Fast!
  • Safe execution needs hardware support

Dual Mode

Distinct execution moes in hardware

• Literally a bit in the processor status register (0/1) (could be more in some archs)
  Kernel Mode
• Read/write to any mem location
• Access any I/O device
• Etc.
  User Mode
• Limited priveledges on hardware, as granted by OS

Hardware Support

Things that can be implemented in hardware:

• Priveledged instructions
• Memory protection (IE process protected from other processes)
• Timer interrupts (kernel regains control on CPU periodically)
• Mode switch (safe and efficient way to switch modes)

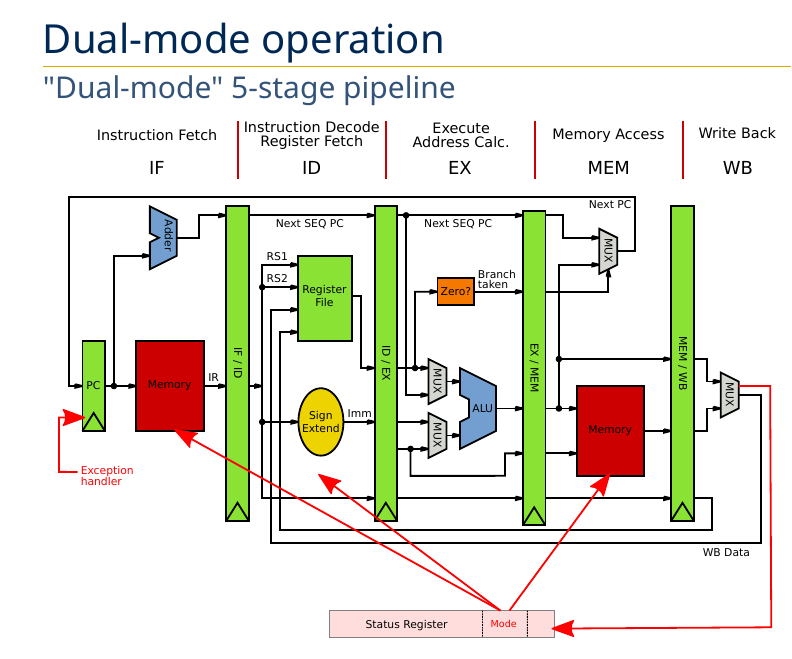

5 stage pipeline:

1. Instruction Fetch (IF)
2. Instruction Decode / Register Fetch (ID)
3. Execute Address Calc. (EX)
4. Memory Access (MEM)
5. Write Back (WB)

Notice the red blocks of memory. In Dual Mode these are protected by the mode:

Examples of Priveledged Instructions, result in seg faults:

• asm ("cli") - Attemtping to turn off interrupts (Clear Interrupt Flags)
• Toggle processor mode
• Modify memory protection
• Flush/invalidate caches/TLBs
• Halt or reset processor
• etc.

Memory Protection

Virtual memory translates to physical memory
Physical memory is bounded:

• If < a base or > a bound, then raise an exception

Boot Sequence

When you power on a computer:

1. Privilege mode set to kernel, and PC set to address of boot code (BIOS)
2. Boot code runs
   • Loads kernel image into memory
   • Jumps to kernel’s entry points
3. Kernel code runs
   • Machine setup
   • Choose the first user process to run, loads it, and jumps to it
     • Priveledge changed back to user mode
       After the process runs, how does the kernel regain control?

Hardware interrupts

Processor periodically interrupted by a hardware timer

User mode to kernel mode (trapping)

• Exceptions (or faults)
  • Caused by program behavior
  • Sync
• Interrupts
  • Triggered by I/O devices (timer etc.)
  • Async
• Sys Calls
  • Request from process to kernel to perform operation on its behalf
  • Intentional synchronous
    Kernel Mode to User mode
• Return from interrupt or sys call
• Process context switch - Resume some other process
• New process start
• Signal - Async notification if signal handler defined

Mode Swtiching

Safe and efficient switching critical:

• Protect from corrupting the kernel
• Reduce kernel overhead
  Reqs:
• Atomic transfer
• Trap vector
• Transparent and restartable process execution

How to switch

User -> Kernel

1. Save cause for trap (Interrupt, Exception, Syscall?)
2. Save current PC
3. Jump to kernel’s trap vector
4. Switch from user to kernel mode
5. Change memory protection
6. Disable interrupts

Kernel -> User

1. Jump (back) to process (restore PC)
2. Switch from kernel to user mode
3. Change memory protection
4. Restore interrupts

Kernel Data

Kernel has its own stack, located in kernel memory

• Separate from process’ stack

Kernel stack is used to save associated process context

One kernel stack per process

• Kernel saves its own state when switching between two processes

6 - Process Scheduling

Processes have:

1. Address space
2. Environment
3. Execution flow

Process Lifecycle:

• Ready
• Running
• Blocked
• Zombie
  Orphans?


Scheduling Vocab

Submission time: time at which a process is created
Turnaround time: total time between process submission and completion
Response time: time between process submission and first execution or first response (e.g., screen output, or input from user)
Waiting time: total time spent in the ready queue

Scheduling Algos

FCFS / FIFO
SJF
Preemptive SJF (SRTF)
RR
Multi-level Queue Scheduling
Multi-level feedback queue

7 - Concurrency and Threads

Concurrency - The composition of independently executing tasks

• Opposite of sequential execution
• Process concurrency - running complex problems as multiple distinct processes

Types of concurrency:

1. CPU virtualization - Process interleaved on same CPU (‘dumb’ threading)
2. I/O concurrency - I/O bursts overlapped with CPU bursts (smart threading, relinquish CPU when I/O bound)
3. CPU parallelism - Code ran with multiple CPU simultaneously

Speedups:

• Usually linear, also could be sublinear (bottlenecked by resources) or superlinear (caching)

Process concurrency limitations

• Forking processes can be taxing (duplicating resources, address space, etc)
• Context switching slow (processor caches not shared between processes)
• Communication difficult between processes (via IPC only, needs syscalls)

Is it possible to run processes in same address space?

• Benefits: No duplication, and shared memory

Process concurrency vs thread concurrency

Threads

Many problems are concurrent, threads are a natural solution

Solution:

• UI App
  • One thread for user responsiveness / UI
  • Other thread for executing longer tasks, or blocking on I/O
• Web server
  • Can interleave on disk I/O, and handle multiple requests at once instead of blocking
• Array computation
  • Use one CPU for first half, another for second half
  • Not possible via forking

Execution Context

Threads have:

• Exclusive use of the processor registers
• Their own stack

Metadata Structures:

Process Control Block (PCB)

• Covered: PID, owner, priority, file descriptors, address space, cwd
• New: active thread, pointers to thread control blocks (TCBs)
  Thread Control Block (TCB)
• Stack pointer, PC, thread state, register values, pointer to PCB, etc.

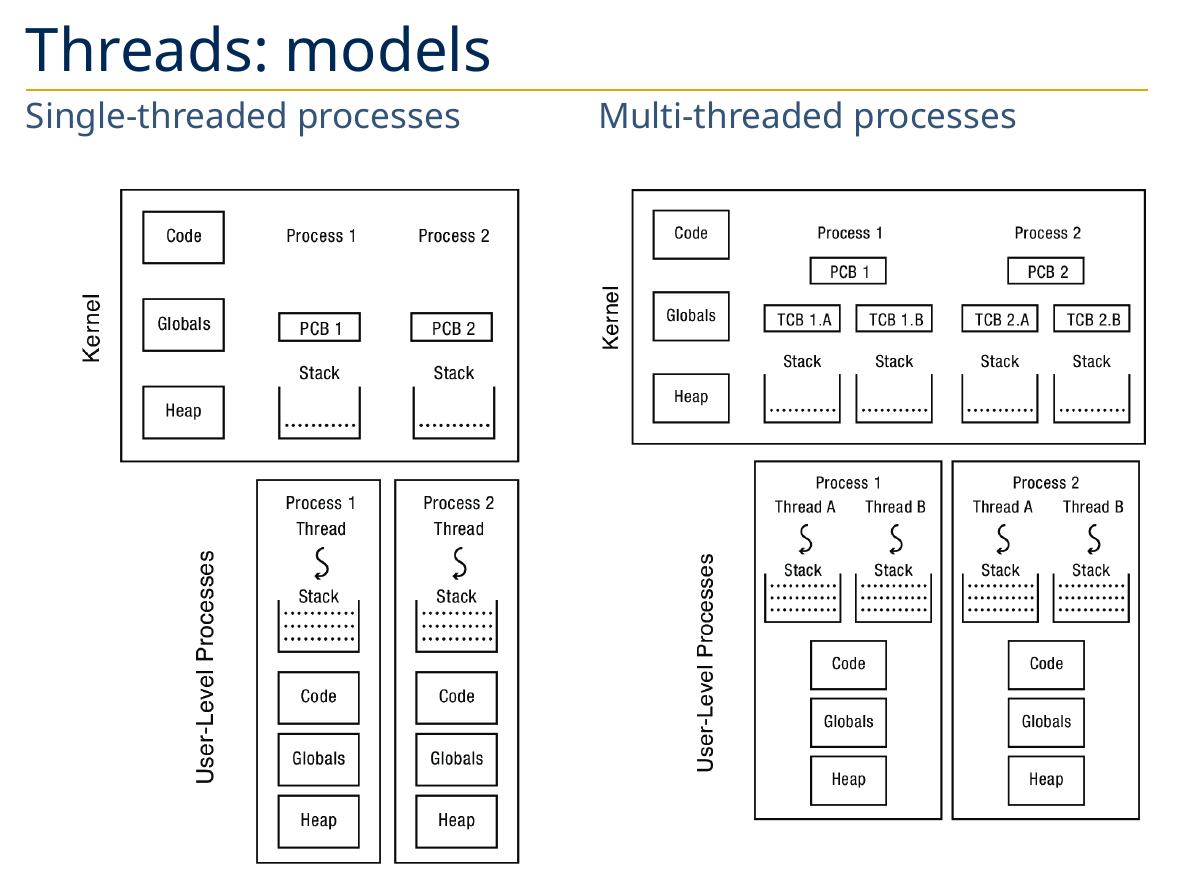

Thread Models

API

Depends on OS/library (e.g. POSIX pthreads)

/* Thread function prototype */
typedef int (*func_t)(void *arg);

/* Create new thread and return its TID */
thread_t thread_create(func_t func, void *arg);

/* Wait for thread @tid and retrieve exit value */
int thread_join(thread_t tid, int *ret);

/* Yield to next available thread */
void thread_yield(void);

/* Exit and return exit value */
void thread_exit(int ret);

Implementation

Kernel-level threads (one-to-one)
User-level threads (many-to-one)

Kernel Threads (one-to-one)

• Threads the OS knows about
  • Each process has at least one kernel-level thread ( main() )
• Kernel manages and schedules threads
  • Syscalls to create/destroy/synchronize threads
  • clone() on linux to create a new thread
• Switching between threads of same process requires a light context switch (registers, stack pointer, program counter)

User-level threads (many-to-one)

• Threads the OS doesn’t know about
• Programmer uses a thread library to manage threads
  • Function to create/destroy/synchronize threads
  • User-level code about scheduling policy
• Switching threads doesnt involve syscall

Kernel vs Users

Kernels:

Pros:

• Blocking syscall suspends only calling thread
• Threads can run in parallel on a multiprocessor system
• Signals can usually be delivered to specific threads
• Used by existing systems (linux)
  Cons:
• Can be heavy, not as flexible
  • (e.g. limited number of threads)

User-level thread

Pros:

• Really fast to create and switch between threads (no syscalls or full context switches)
• Customizable scheduler
  Cons:
• All threads within same process are blocked on syscalls
• Customizable scheduler

Thread Flavors

1. Single-threaded proccesses (traditional application model)
   • 1:1 with kernel thread
2. Multi-threaded processes with user threads
   • M:1 with kernel thread
3. Multi-threaded processes with kernel threads
   • 1:1 with kernel threads
4. In-kernel threads (aka kernel threads)
   • The kernel itself can be multi-threaded
   • E.g., idle thread, thread migration, OOM reaper, disk writeback, etc.

Another flavor as well, how do threads share processor?

Cooperative

• Threads run until they yield control to another thread
• Better control of scheduling
• Can lead to potential starvation

Preemptive

• Threads are frequently interrupted and forced to yield
• Guarantees of fairnes
• Nondeterministic scheduling

Reentrant - if it can be interrupted at any point during its execution and then safely called again (“re-entered”) before its previous invocations complete execution.

• e.g. strtok_r() - the r means it is the reentrant version of strtok()
• No shared context between threads
  Global Variables - Thread local storage.

Issues with threads:

• Forking - fork only clones the calling thread, mixing forking and multi threading not recomended
• Shared data - shared data can lead to race conditions
• Global variables and non-reentrant library functions

8 - Synchronization

Private:

• Processor registers
• Stack
  Shared:
• Global memory

Race conditions

Race condition - when the order of operations between concurrent threads leads to undesirable/unexpected results

The whole too much milk example…

• Need to be safe: at most one milk bought
• Liveness: somebody buys milk

Atomic operations

Completing an operation without getting interrupted in the middle. Crucial in dealing with race conditions.
