LS3 - Reflection

Java reflection, proxies, andannotations (4 days)

Annotations and runtime reflection
Java Dynamic proxies
Java Annotation processor
Case study: redis perssistence network

Annotations

Metadata added to Java code @Annotation

  • Used to interface with:
    • Frameworks
    • Compilers
    • IDEs

Can be applied to:

  • Classes / Fields / Methods

Uses:

  • Junit - Fields labeled with @Test are passed to Junit
  • Hibernate - A Java object persistence framework. Annotations used to define behavior: @Entity, @Table(name = "users), and @Id. An ORM?
    • Session session = factory.openSession()
    • session.persist(user)
  • Microservice frameworks (Spring boot)
  • MVC Frameworks (Spring MVC)
  • Logging frameworks
  • Other design patterns such as Inversion of Control (IoC)

Reflection and Metaprogramming

  • Ability of a program to inspect and manipulate its own structure and behavior at runtime within the same language environment
  • Can dynamically instantiate classes and invoke methods/constructors on it
    Supported by Java, Go, JS

Java Reflection

  • Provides APIs to inspect and manipulate the classes, methods, fields, and so on
  • Can directly access private class fields and methods from outisde the class using reflection
Keys

java.lang.Class - Metadata for a class or interface
java.lang.reflect.Method - Metadata for a class method
java.lang.reflect.Field - Metadata for a class field
java.lang.reflect.Constructor - Metadata for a constructor
Java runtime automatically defines the above as well as:

  • A class object for every class you define (describes Methods, Fields, etc)

Reflection API:
java.lang.reflect.Class - Encapsulates metadata for a class

  • Returned by obj.getClass()
    clazz.getMethods - Array of methods for clazz
    java.lang.reflect.Method - invoke using m.invoke(obj, [args])
    java.lang.reflect.Field
  • Get/Set with f.getValue(obj) and f.setValue(obj, val)
    c.GetConstructor().newInstance() - Invokes constructor for a new Obj
Use Case: Redis

Redis: REmote DIctionary Server

  • In memory data store
  • Can be used as a:
    • Temorary DB
    • Caching layer
    • Message broker
Jedis Library

(Java Redis?)
Used to communicate with Redis server from local machine
Can use reflection to persist objects without needing to write specific object code to interface

Defining Annotations
// Def
@interface MyAnnotation {
	String author();
	...
}

// Usage
@MyAnnotation(author = "John Doe")
  • Definition must begin with @interface
  • Can have multiple fields
  • Each field has a constructor (can have default vals)
  • Fields can have arrays

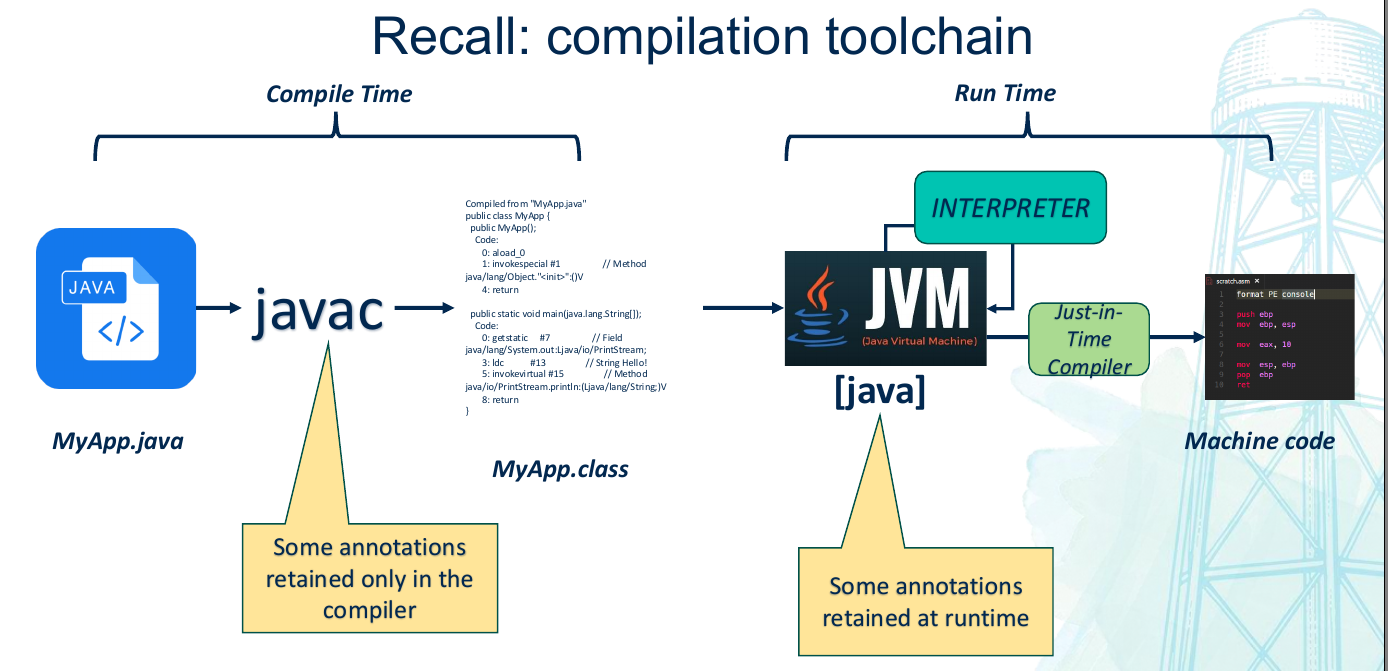

Java Compilation

  • Some annotations “eaten” at compile time

To prevent this, you need annotations for your annotations
@Retention(RetentionPolicy.RUNTIME)

The @Retention annotation indicates the retention policy for the annotation

  • @Retention(RetentionPolicy.SOUR CE) – only present in the source file
  • @Retention(RetentionPolicy.CLAS S) – only present in the class file
  • @Retention(RetentionPolicy.RUNT IME) – present at runtime
  • Reflection can only access annotations with RetentionPolicy.RUNTIME
Reflection Downsides
  • Can’t generate new methods/fields/…
  • Causes loss of type safety, errors only caught at runtime
  • Performance slower than directly access
    • Tends to be fine when performance loss not noticeable (databases, network IO)

Proxies

Proxy review:

  • A wrapper around the original target
  • User accesses the proxy object
  • Proxy: performs some additional logic, forwards request to target

StaticProxy:

  • Pros: Fast, simple
  • Cons: Must be statically designed for each ‘proxyable’ class. Duplicate logic for repeated logic.
    DynamicProxy:
  • Pros: can be used for any type, with any added functionality
  • Cons:
    • Needs bytecode instrumentation
    • Adds a performance overhead
ByteBuddy / Javassist

Allow proxy creation via dynamic subclassing
Hide bytecode manipulation complexities

  • (internally using ASM library, bytecode generation/manipulation

Using Javassist:

  1. Create a ProxyFactory
ProxyFactory proxyFactory = new ProxyFactory(); proxyFactory.setSuperclass(clazz);
  1. Implement the interface MethodHandler
  2. Override the invoke method to add function
  3. Invoke target method
MethodHandler methodHandler = new MethodHandler() {
	@Override
	public Object invoke(Object self, Method thisMethod, Proxy’s Method proceed, additional Object[] args) throws Throwable {
		log(“accessing method” + functionality thisMethod.getName());
		return proceed.invoke(self, args);
	}
};

`self` - target obj
`proceed` - invoked method in target obj
`thisMethod` - invoked method in proxy obj
`args` - args passed to method invocation
Uses of Proxies

Sample use cases:

  • Lazy loading
  • Mock testing
    Hibernate, Mockito, EasyMock
Lazy Loading

For each post, need to load reply to post and the reply to each of those replies too.

However, performance can be improved by only loading initial replies, and keeping other replies unloaded.

  • Improves performance + UI responsiveness
