CMOS-Diagrams

• A nMOS pulls to ground when activated. Active high.
• A pMOS pulls to ground when NOT activated. Active low.

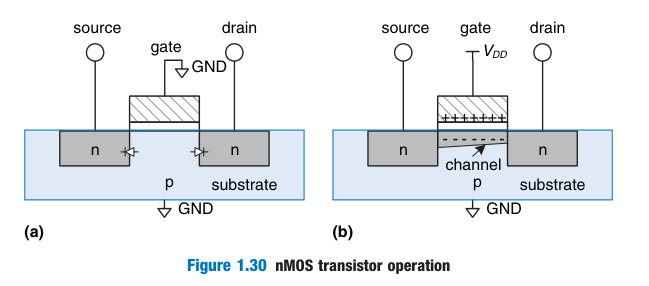

Once the gate (G) is greater than threshold voltage () then the gate will form a path between the two, and the device will be on.

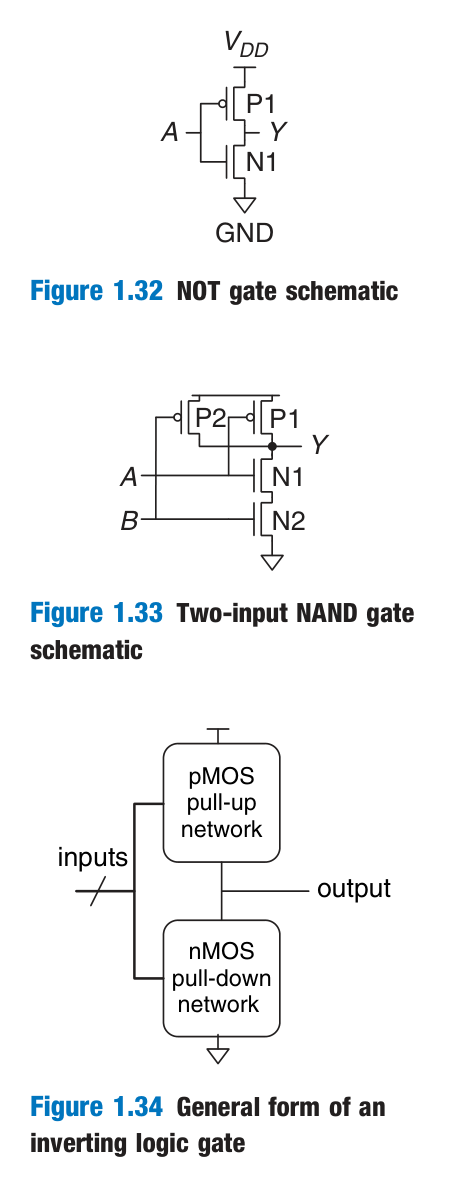

• As shown in class, NOT gate

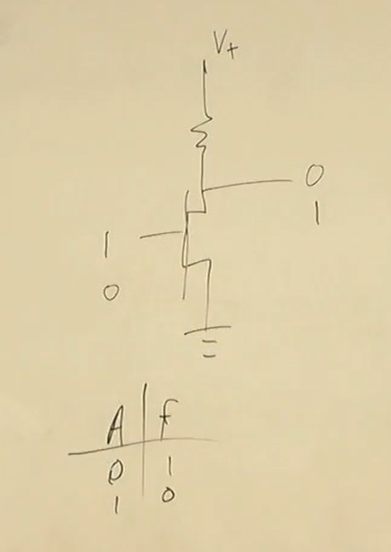

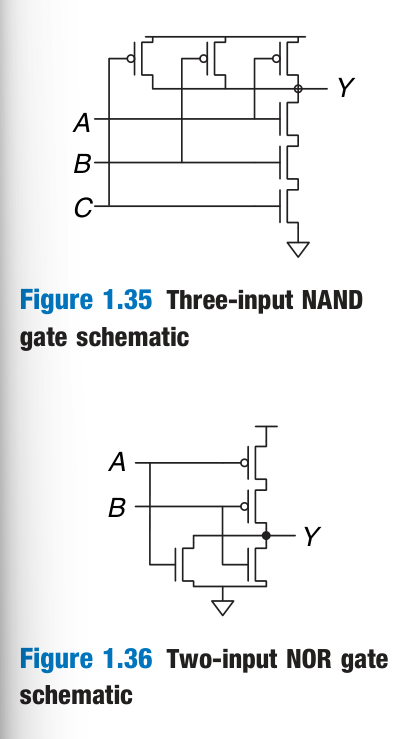

• Resistor shown above in the squiggly.
  • But, the resistor is expensive to make, so instead we use a gate on top.
